L.K. Machinery

L.K.’s Outstanding Technological Background in Die Casting and Injection Molding Provides a Solid Foundation for Its Future Development L.K.’s comprehensive engineering R & D capabilities include special die casting , injection molding , automated control and material technology, etc. L.K. Group integrates various advanced technologies, such as real time control for die casting and injection molding , new material magnesium alloy die casting and low-pressure die casting technology. Such core technologies allow L.K. Group to remain competitive. Based on the core technology, constant innovation and engineering application, L.K. Group is able to achieve an all new overlapped R & D system that combines research, design and manufacturing. This exclusive R & D system provides a driving force for constantly upgrading L.K.’s technological level.L.K. is the fastest growing CNC machine manufacturer. Their CNC machines have belt and direct-drive spindles with speeds from 8,000 to 24,000 rpm

Compact Footprint Machines - TC Series

Cutting Performance

LK Tapping Centers feature extraordinary cutting capability. Via multiple parameter settings from the CNC, the work piece can be made according to the most demanding jobs.

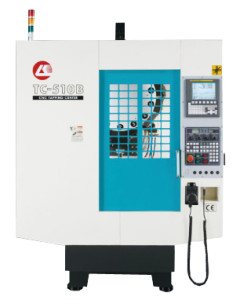

LK TC510 by Amerigo Machinery Co



TC-510

Speed is Everything

The 3 axes’ motors are direct coupled with servo motors. The backlash-free design powers the axial motion to its optimum level, featuring no noise, low temperature rise and high accuracy.

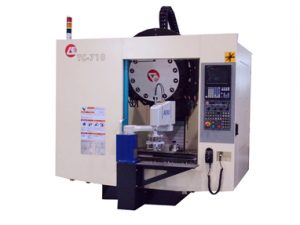

LK TC-710 Amerigo Machinery Co



TC-710

For every high productivity workshop, every second counts. To reach maximum cutting performance, LK TC series employs a low inertia spindle motor featuring high torque output during low speed range, as well as high acceleration/deceleration output, to reduce tapping time to a minimum.

Spindle Acc/Dec from
0-15000 rpm: 1.4 seconds

Product Request Form

First
Last
Integral Auto Pallet Changer - TT Series

The L.K. Machinery TT-510P is equipped with a fully enclosed enclosure. The full enclosure provides operator protection from flying metal chips and coolant. It also keeps adjacent work areas clear of coolant, over-spray and flying chips. The sliding front door and side panel windows give L.K. Machinery accessibility and visibility for operation and maintenance.

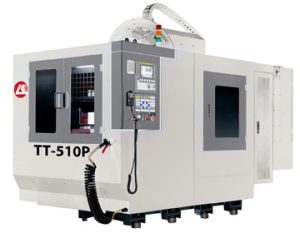

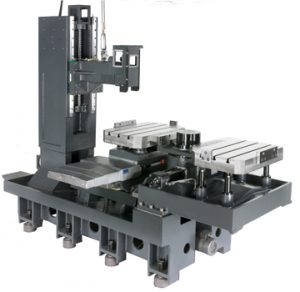

LK TT-510P by Amerigo Machinery CoLK TT-510P by Amerigo Machinery Co 2



TT-510P

The 12,000 rpm spindle is a completely sealed cartridge and utilizes angular contact bearings. This insures the spindle will last a long time without any permanent failures. A special lubricant is used to minimize thermal growth and provides long life with low maintenance. The cartridge is fitted into a rugged cast iron housing which helps maintain constant temperatures and dampens vibration more effectively.

One of the most desirable features of the TT-510P is the use of the Twin Pallets which offers a circular 180 degree motion of the pallet. The change time is a very fast 5 seconds. This enables the spindle to continue machining much longer without suffering from down time due to loading and unloading of parts. This machine with its Integral Pallet Changer is the ideal solution for high production environments.

The 1.5 second ATC is a 14/20-tool magazine. The Arm type changer is the fastest way to reduce tool change time during machining cycles. The drum changer magazine is both random access and bidirectional, taking the shortest path to reach the next tool.

Product Request Form

First
Last
Built-in Twin Screw Chip Conveyors - MT Series

Fully Enclosed

Vertical Machining Center w/APC

The L.K. Machinery MT-800P is equipped with a fully enclosed enclosure. The full enclosure provided operator protection from flying metal chips and coolant. It also keeps adjacent work areas clear of coolant and over-spray. The sliding front door and lift out side door provide accessibility and visibility for operation and maintenance.

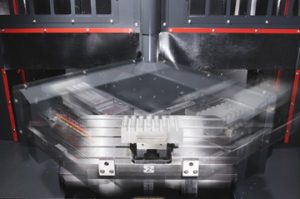

One of the most desirable features of the MT-800P is the use of Twin Pallets that pallet change in a circular 180-degree motion. The pallet change time is a very fast 7-second. This enables the spindle to continue machining much longer without suffering from down time due to loading and unloading of parts. The pallet changer is an ideal solution for high production requirements.

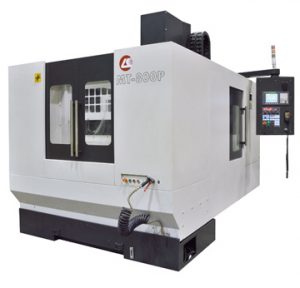

LK MT-800Pv1 by Amerigo Machinery CoLK MT-800Pv1 by Amerigo Machinery Co 2



MT-800P

The machine base is constructed with high-density cast iron and rib type reinforcement which provides maximum support and stability. The column is fully supported during machining with an extra wide base. The total machine weight is over 14,000 lbs. insuring maximum rigidity.

The spindle and head stock components are rigidly mounted as a traveling column assembly. No counterbalance is required. The 10,000-rpm spindle (optional to 15,000 rpm) enables cutting feed rates up to approximately 393 inches per minute. The Mitsubishi M70 control option for improved accuracy at high feed rates is standard on the MT-800P.

The X, Y and Z-axis roller bearing guide way components allow for faster rapid positioning, reduced slide surface friction, and improved positioning accuracy. A fully automatic lubrication system ensures reliable lubrication for all high precision roller ways and ball screws.

Product Request Form

First
Last
Two Machines in One - TC Series

The TC-1200 is equipped with a fully enclosed enclosure. The full enclosure provides operator protection from flying metal chips and coolant. It also keeps adjacent work areas clear of coolant, over-spray and flying chips. The sliding front door and side panel windows provides accessibility and visibility for operation and maintenance.
Duplex Station exchange design allows for division of the work area so that instead of one table with 47″ travel, there can be two work areas (twin table) of 16.15″.This twin table decreases work parts exchange time. The division wall can be mounted and the two work areas allow for machining on one side and exchange of work parts on the other.

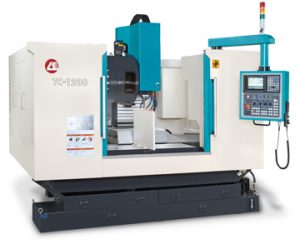

LK TC-1200 by Amerigo Machinery CoLK TC-1200 by Amerigo Machinery Co 2



TC-1200

The enlarged foundation block and strengthened machine base optimizes the machine’s rigidity and reliability.

FEA Design
Through Finite Element Analysis, the machine structure is optimized for the best performance.

The two plate spindle motor seat design adds more adjustment with lower tolerances. This produces better concentricity between the motor shaft and spindle, reducing vibration and improving over all performance.

An oversized Z Axis motor , direct coupled with ball screw, eliminates the need to have a mechanical counter balance which produces better surface finishes.

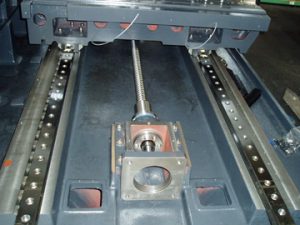

Linear motion guideways and pre-tensioned ball screws on X/Y/Z axes are installed to deliver more torque and thrust.

Product Request Form

First
Last
Operator Friendly Design - MV Series

The LK MV Series Vertical Machining Centers are built for affordable high efficiency machining with excellent rigidity as well as accuracy. The enhanced and versatile performance of MV Series machines provide up to 4 or 5-axis (optional) motion for machining complex parts. Needless to say, LK MV Series Vertical Machining Centers are designed for the most demanding process requirements.

Customers worldwide praise the extraordinary machining performance and the proven quality of the MV series machines. The MV series machine is widely used in aerospace, automobile, medical equipment, communication and electronic industries where cast iron, copper, aluminum or allow steels are machined
High performance linear guideways are standard features on all LK Vertical Machining Centers. Pre-tensioned ball screws provide full load-carrying capacity,featuring less power consumption, low friction and high reliability.

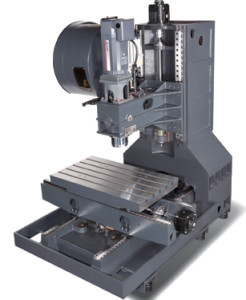

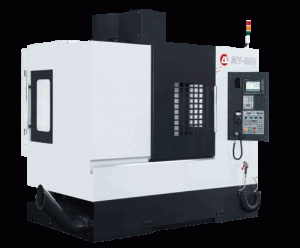

LK MV-850 by Amerigo Machinery CoLK MV-850 by Amerigo Machinery Co 2



MV-850.1050.1680

Operator Friendly Design

The L-shaped front door allows heavy work pieces to be loaded or unloaded by crane from the top of the machine.

“A” Shaped Wide-Stance Column

The extra wide machine column base increases static as well as dynamic rigidity of the machine. The “A” shaped column provides excellent rigidity during damping heavy duty cutting.

Automatic Lubrication

The lubrication system automatically distributes oil to all critical components with proper oil amount. The lubrication interval can be easily adjusted for maximum performance.

Product Request Form

First
Last
Standard with Full 360,000 Positions: HT Series

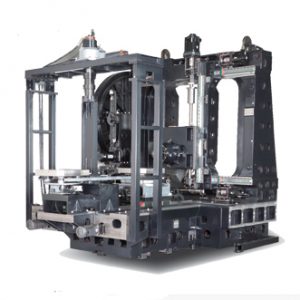

High acceleration/decelaration requires absolute structural rigidity to keep cutting time short. The LK HT horizontal machining centers adopt Box-in-Box design which firmly anchors two pre-tensioned X Axis ball screws for the optimum motion control performance and it upholds the best cutting results.

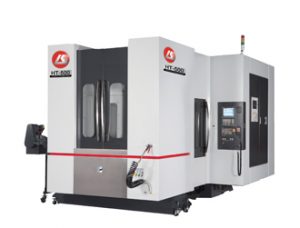

LK HT box in box machine by Amerigo Machinery Co LK HT box in box machine by Amerigo Machinery Co 2



HT-400.500.630.800

Operator Friendly Design

The L-shaped front door allows heavy work pieces to be loaded or unloaded by crane from the top of the machine.

The horizontal machining centers adopt Box-in-Box designs which firmly anchors two pre-tensioned X axis ball screws for the optimum motion control.

Automatic Lubrication

The lubrication system automatically distributes oil to all critical components with proper oil amount. The lubrication interval can be easily adjusted for maximum performance.

Product Request Form

First
Last
5-Axis Fixed Table - Millmaster 3000 Series

MillMaster 3000 Series

Ultra high speed CNC compact milling centers with bridge type one piece casting design which are ultra rigid with excellent positioning.

 LK Millmaster CMC-3550P by Amerigo Machinery Co



CMC-3550P

Unmatched High Performance for Mass Production

This machine is the combination of a sturdy mold making structure with the high acceleration / deceleration features of a tapping center.

3.2 Second Pallet Change Time

The entire pallet change unit is anchored on the machine elimating overhang. The center hole is in the middle of the pallet changer providing easy access to piping and wiring.

LK Millmaster CMC-3555 by Amerigo Machinery Co



CMC-3555

High Speed 5-Axis Simultaneous Machining

Used in production of complicated molds and dies for aerospace, medical equipment,optical-electronics, semi-conductor and all high precision industries, the CMC-3555 is the technology flagship model of LK and the machine with the best price-peerformance ratio.

The LK CMC-3555 is the ultimate solution for sophisticated parts machining. The integrated rotary / tilting table provides accuracy, stability and flexibility.

LK Millmaster CMC-3550 by Amerigo Machinery Co



CMC-3550

The Answers to All Aspects of 3-Axis Milling.

The LK CMC-3550 is designed for a universal approach to mold making and general processes requiring small to medium sized parts.

Features of Fixed Bed Structure

The load for all moving parts is consistent, providing high precision stability. The design of the machine allows for easy accessibility to the work table and wide flexibility of customization with fixtures or moulds.

Product Request Form

First
Last

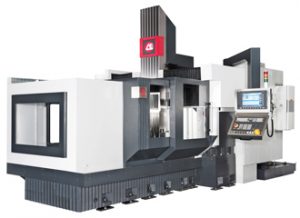

High Speed Bridge Mill - EU-2000

Synergy with Nicolás Correa is based on a reliability concept, with which the high speed machining center model EU-2000 has been developed using the latest generation of technologies for High Speed Machining. As a result of its exceptional rigidity, this model offeres high dynamic performance with excellent accuracy, at a competitive price.

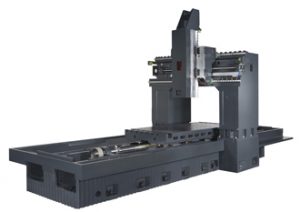

LK High Speed Bridge Mill by Amerigo Machinery CoLK High Speed Bridge Mill by Amerigo Machinery Co 2



EU-2000

EU-2000

Built-in spindle with high torque and a high s peed machining motor provide extremely low noise, vibration and thermal stability.

The Unbrella tupe tool magazineis easy to maintain and the tool indexing unit provides exceptional stability and high speed tool change.

Siemes 840D Controller is standard with a 15″ color display and full keyboard.

Product Request Form

First
Last
