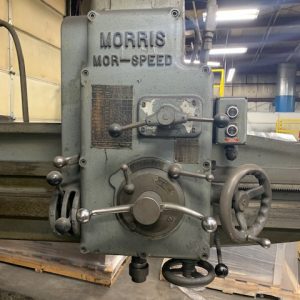

Morris Mor-Speed 5′ Radial Arm Drill Press

5  foot arm

11” Column

5HP Motor

#4 Morse Taper in Spindle

Box Table 24″ x 30″ x 18″

Description

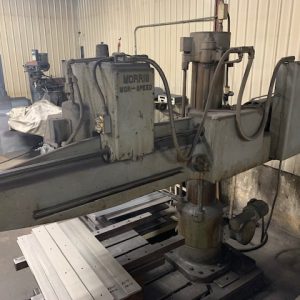

Morris Mor -Speed Radial Arm Drill Press

5  foot arm,  11” Column, 5HP Motor , #4 Morse Taper in Spindle

12 Spindle Speeds, 110 thru 3000 RPM, 4 gear Ranges

Spindle Travel 12”

Feeds .004” – .025”

Max. distance between Spindle and Column   55.25”

Min. distance between Spindle and Column   16”

Working Surface of T Slotted Base   36” X 63”

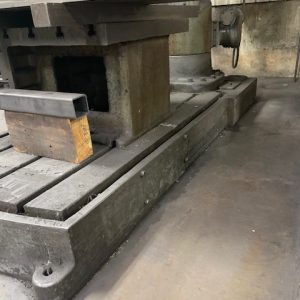

Box Table 24″ x 30″ x 18″

Power Elevation, Power Feed, Power Lock

Floor Space   37” x 126”

Approx. weight  10,200 lbs.

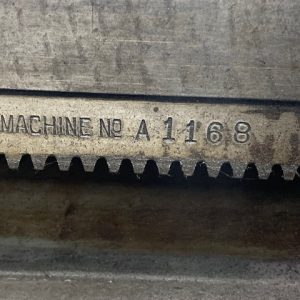

Machine Serial Number   A1168

Wired 220 VAC 3 phase, updated electrics

Excellent Condition

Specifications Subject to Buyer Verification!

Can be Seen Under Power in our Downtown Louisville, KY. warehouse!
